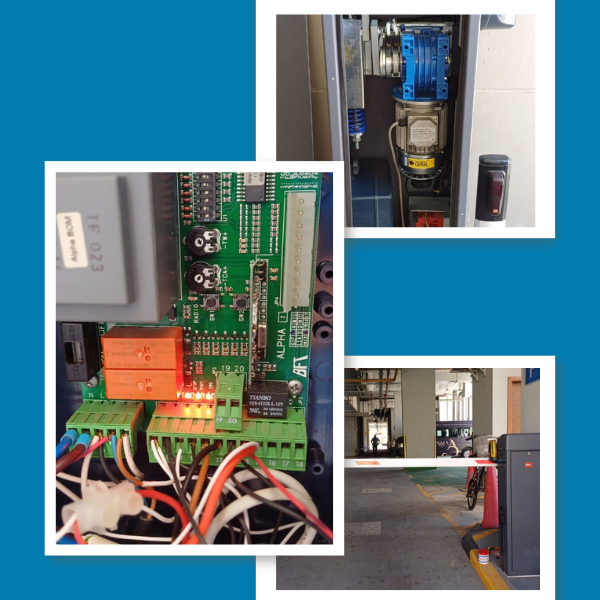

Boom Barrier Installation & Maintenance Guide
Boom barriers are essential for controlling vehicle access in parking lots, residential areas, commercial buildings, and toll plazas.

1. Installation of Boom Barrier

Step 1: Site Inspection & Preparation

• Identify the installation location and measure the road width.

• Ensure proper power supply (usually 230V AC or 24V DC for automatic barriers).

• Check for underground utilities before digging.

Step 2: Mounting the Boom Barrier

• Mark the foundation points and dig holes for the base plate.

• Install the foundation plate with anchor bolts and level it properly.

• Fix the boom barrier cabinet on the foundation and tighten the bolts.

Step 3: Fixing the Boom Arm

• Attach the boom arm to the motorized unit.

• Adjust the arm length according to the road width.

• Ensure smooth movement by checking alignment.

Step 4: Electrical Connections

• Connect the barrier to the power supply.

• Wire the control panel and integrate with RFID, push button, remote control, or ANPR system (if required).

• Configure safety sensors (e.g., photocells or loop detectors) to prevent accidents.

Step 5: Testing & Calibration

• Check the opening and closing speed.

• Adjust the limit switches for proper stopping positions.

• Test the remote control or access control integration.

2. Maintenance of Boom Barrier

Regular maintenance ensures the smooth operation and long life of the barrier.

Routine Maintenance Checklist

✅ Visual Inspection

• Check for any physical damage or loose bolts.

• Inspect the boom arm for cracks or bends.

✅ Lubrication

• Apply grease or lubricant to moving parts (hinges, motor gears).

✅ Electrical & Sensor Check

• Inspect all wiring connections and tighten loose terminals.

• Clean and test safety sensors (photocells, loop detectors).

✅ Motor & Spring Tension

• Ensure the motor is functioning smoothly without unusual noise.

• Adjust the spring tension for balanced movement of the boom arm.

✅ Software & Control System Check

• Update firmware (if applicable).

• Reconfigure access control systems if necessary.

✅ Test Operation

• Open and close the barrier several times to ensure proper functioning.

Conclusion

A well-maintained boom barrier ensures smooth vehicle access control and security. Regular servicing prevents breakdowns and extends its lifespan. If you need professional installation or maintenance services, MASARAT ALMUBARAK Technical Services can help in Dubai
